Description

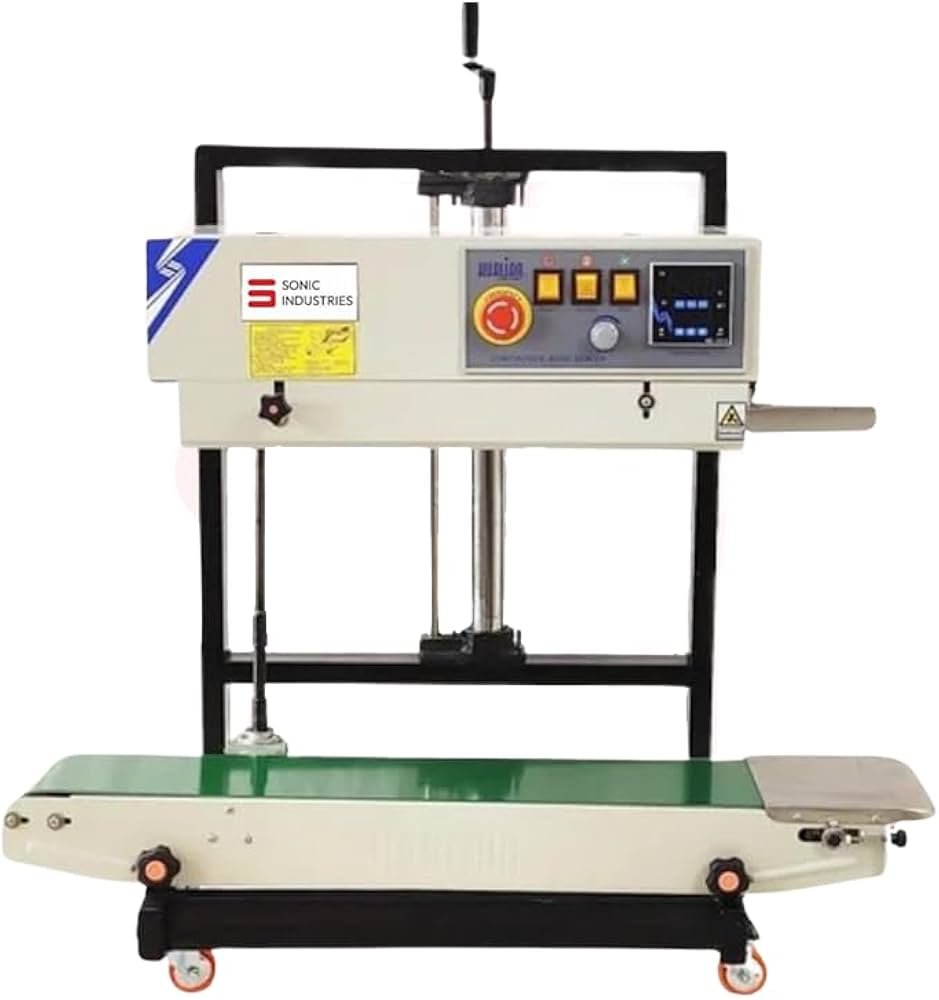

MS Top 5Kg Vertical Band Sealer – Industrial Continuous Sealing Solution
The MS Top 5Kg Vertical Band Sealer is a robust industrial sealing machine engineered for heavy-duty packaging applications. Designed with a strong mild steel (MS) body and upgraded top-model components, this machine delivers stable and reliable sealing performance for pouches weighing up to 5 kg.
The vertical configuration allows pouches to remain upright during the sealing process. This design is especially beneficial for packaging liquid, semi-liquid, powder, and granular products where spill prevention and sealing precision are critical.
This model is widely used in food processing plants, agro-product packaging units, FMCG manufacturing, and industrial packaging facilities.
🔹 Vertical Sealing Advantage
The vertical band sealing system ensures safe packaging for heavier pouches. The upright positioning prevents product leakage during sealing and ensures clean, professional results.
How It Works:
Filled pouch is placed upright on the conveyor.
The pouch moves through heated sealing bands.
Heat and pressure create a uniform seal.
Cooling section solidifies the sealing area.
Finished pouch exits ready for storage or dispatch.
This continuous operation significantly increases production efficiency compared to manual sealing machines.
🔹 Heavy Duty Top Model Construction
The Top model offers improved durability and long-term performance compared to eco variants.
Top Model Benefits:
✔ Stronger motor and gearbox
✔ Enhanced internal component quality
✔ Better belt alignment
✔ Stable conveyor support for 5kg loads
✔ Suitable for extended working hours
It is designed for medium to large-scale businesses requiring continuous packaging output.
For a general overview of heat sealing machines and continuous sealing processes, refer to:
https://en.wikipedia.org/wiki/Heat_sealer (DoFollow)
🔹 Durable Mild Steel Body
The MS body provides:
Strong structural stability
Resistance to industrial wear and tear
Cost-effective heavy-duty solution
Long operational lifespan
This makes it ideal for factories operating multiple shifts.
🔹 Adjustable Temperature & Speed
The machine includes:
Temperature range: 0–300°C
Conveyor speed: 0–12 m/min
It is compatible with:
Laminated pouches
Poly bags
Aluminum foil pouches
Multi-layer packaging films
Operators can adjust settings based on pouch thickness and material type to achieve optimal sealing quality.
🔹 Key Features
✅ 5Kg Heavy Load Capacity
Designed specifically for bulk packaging.
✅ Vertical Continuous Sealing
Ideal for liquids, powders, and granules.
✅ MS Top Model Construction
Enhanced strength and durability.
✅ Adjustable Temperature Control
Ensures strong, consistent seals.
✅ Variable Conveyor Speed
Improves production flexibility.
✅ Airtight & Leak-Proof Sealing
Professional finish for retail and wholesale markets.
✅ Continuous Operation
Suitable for long production cycles.
🔹 Technical Specifications
| Specification | Details |
|---|---|
| Sealing Type | Vertical Continuous Band |
| Body Material | Mild Steel (MS) |
| Model Type | Top |
| Sealing Width | 6–12 mm |
| Temperature Range | 0–300°C |
| Conveyor Speed | 0–12 m/min |
| Power Supply | 220V / 50Hz |
| Power Consumption | Approx. 650–800W |
| Maximum Pouch Capacity | Up to 5 kg |
| Machine Weight | Approx. 35–45 kg |
🔹 Applications
🍿 Food Industry
Spices, grains, dry fruits, tea, coffee, snacks.
💊 Pharmaceutical Industry
Powder sachets, herbal medicines, nutraceutical products.
🌾 Agriculture Sector
Seeds, fertilizers, agro powders.
🧴 FMCG Industry
Detergent powder, refill packs, bulk retail pouches.
The 5kg capacity makes this machine especially useful for wholesale and industrial packaging needs.
🔹 Benefits
✔ Suitable for heavy 5kg pouches
✔ Strong and consistent sealing
✔ Durable mild steel body
✔ Reliable top-model performance
✔ Reduces leakage risk
✔ Easy to operate and maintain
✔ Cost-effective industrial solution
